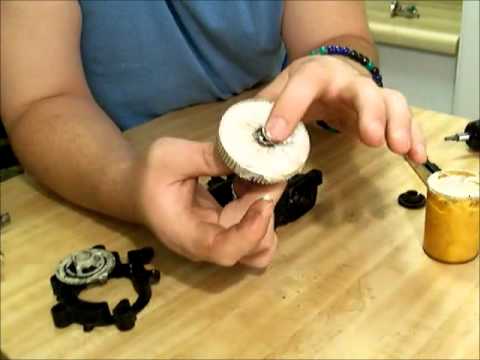

I explain in more detail how to dismantle the plastic shell on the window motor, as well as how to repair the bushings that freeze up, and also how to “prope…
Chrysler Lebaron Convertible rear window repair guide
10
Like
Save
){kind=link}
Comments
Write a comment
You must be logged in to post a comment.
I appreciate the videos. I have a 1990.
BTW, if your window is sluggish, it probably the motor needs the bushing
greased! The tracks, even if they are caked with gunk, are no match for the
power of the motor. Its a darn big one, and its a worm gear drive at that.
It could probably smash a finger good when properly lubricated.
To remove it quick, you will need a 10mm socket, a 1.5ft extension, and a
socket wrench. Rear window needs to be up. Lower your top, then on the side
you want to work on, remove the screw in the ‘top latch’ and swing the
vinyl cover “molding” out of the way some. Use your extension to get to the
one single bolt at the bottom of the motor assembly. Its way down there.
Then, take the two upper ones out. wiggle the entire assembly,
motor/window/track system out all at once and unplug it.
whats the rear window motor called for a lebaron convertible? im lookin for
one because mine r dead
How do you bench test it? and does it matter that the little clear plug is
missing from the bottom of the motor?
Its for a 95 but i’d bet it would work for any of the motors.
hey man i just wanted to tell you thanks because this worked on mine, the
hardest part was getting the brush assembly/plug out…. that thing was in
there good!
and what year of lebaron convertible is the motor for?
How do I gain access to the motor assembly? Motor works.Appears to b ea
track(some have mentioned cables) problem.I just want to gain access to
it.Suggestions please.Thank you.
I call it a rear window motor 😉
