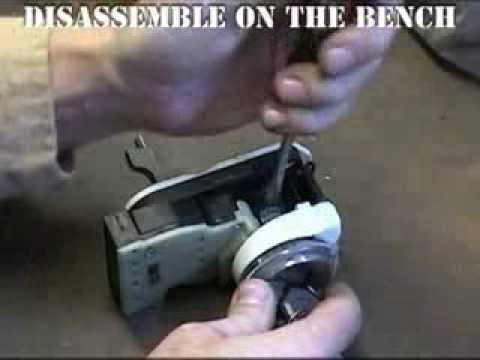

http://www.wellsve.com/ Replacing an ignition switch on a Chrysler Jeep product “The information presented in this program is based on a specific diagnostic …
http://www.wellsve.com/ Replacing an ignition switch on a Chrysler Jeep product “The information presented in this program is based on a specific diagnostic …
You must be logged in to post a comment.
){kind=link}
If you find the draw is too high, let me know and I will help you pinpoint the issue. If it is not too high, the problem is probably the battery. It is a very common issue on your vehicle to have the battery cause the problem. Stay in touch,
Mark Hicks
Wells Vehicle Electronics
I think that light is on all the time. Try disconnecting the fuse that feeds it to see if the battery still goes dead. Here is a test to see if there too much of a draw on the battery after the key is turned off.
1. Check the amperage draw by putting an ammeter in series with the battery negative cable.
2. Install a jumper in parallel. Let the vehicle sit this way for 45 minutes, then remove the jumper and read the draw in amperage.
3. Up to 50 milliamp is normal.
Well, I’ve got an issue with the ignition switch in an 1996 Jeep Cherokee. The green light that surrounds the switch does not shut down never. Even with all doors closed and locked, the green light is still working and draining the battery. What can I do to fix it?
I ignition switch suppose to be exact fit for my 95 Cherokee Sport. Switch fits fine but the key cylinder does not. I can move it to start it but it will come out. In addition, the thumb button on the gear shift wont press in to put it in gear. Never did this. I assume something to do with ignition switch or key cylinder not properly fitting???
capitalism at work…i’m impressed.
You are welcome I am happy we could help!
Mark Hicks
Wells Vehicle Electronics
Probably a professional thief who figured he could make a ton of money on the invention and also would know exactly what tools he needs to continue steeling cars..lol
My 95 Cherokee Sport was starting and then suddenly stalling after only seconds. Went thru everything, changed battery cables, terminals, ground wires.. Not a waste of time exactly as they were corroded anyway. But!!! Problem was ignition switch! My Jeep guru friend figured it out. I thought I was gonna have to take the whole steering column off. This is the best step by step repair I have seen ever. Thanks.
3. Finally test terminal 85, in park or neutral a ground should be present. Check the neutral safety switch operation.
It is common for the switch to cause this issue on your vehicle, but be sure to test it first!
Mark Hicks
Wells Vehicle Electronics
1. Test the starter relay socket terminal 86 for Battery + with the ignition switch in the cranking position. If it is not present at the ignition switch, if the Pink/Black wire has Battery + but the Yellow wire does not in the cranking position, the ignition switch is defective. Also check fuse #31 in the junction block.
2. Next, at the starter relay, check terminal 30 for battery + voltage and then jumper it to terminal 87. The motor should turn over. If not, check the starter motor.
I have an 04 Jeep GC SE and all the lights come on but it will not start..never had an issue before..it wont even crank…thru research I believe it may be the ignition switch and would like to see what you think given the provided symptoms. The starter is not making noise or being engaged and it has sat for over 24 hours and still no change..could this be the issue w/ my car?
LOL You are very welcome, your words mean a lot to us too.
Mark Hicks
Wells Vehicle Electronics
Thank you Mr. Hicks…couldn’t have done it without you [thumbsup]
My Bride’s switch died about the time you posted this..[grin]
Thank you for the kind words! They mean a lot to us.
Mark Hicks
Wells Vehicle Electronics
PS who is the moron engineer that thought it necessary to have a “tamper-proof” torx screw??
this is the best how to video I have ever seen…THANKS
Hi there. I am writing from Greece. Congratulations for your video. Can you tell me witch is the exact part list number for the ignition switch for a jeep cherokee 4,0Lt 1996 model? As I can see, on the destroyed switch (someone tried to steal the car) there are these numbers. 4326 6 22 and 32199 on the switch and 380854AAI on the cylinder. It seems to be exactly like the one on your video but I see that you mention different code numbers. Thanks in advance.
all in all its very easy gramma can do it comon sence
Many Thanks !! Worked on my 94′ JGC ……. bit of a problem …… small piece of pot metal had broken off from the original and was causing problem of fit …… once cleared, it all went as you said ……… God Bless !
If it has the same type of ignition switch, yes.
Mark Hicks
Wells Vehicle Electronics
could this fix the problem on an 2003 grand Cherokee as well?
Sorry we do not have one specifically for your vehicle. If you call us M – F at 1-800-558-9770, press 3 for tech assistance we will be happy to e-mail the directions to you.
Thank you for the kind words,
Mark Hicks
Wells Vehicle Electronics
Great Video! Do you have one for a 1990 Jeep Cherokee? I’m looking for information on replacing the lock cylinder but the older cherokee steering columns are completely different than this.
Thank you for the kind words! They mean more to us than you may know.
Take Care,
Mark Hicks
Wells Vehicle Electronics
Thanks for the informative video.Very well done.
I am pleased we were able to help you out. Thank you for the update and the kind words they mean more to us than you may know!
Take Care,
Mark Hicks
Wells Vehicle Electronics
This video helped me so much!!. Once i did everything in this video the issue with the transmission was gone EVERYTHING works !!! thanks again for having this video posted
If they bent it, it is probably disconnect from the activator I talked about. It sounds like the switch will need to be replaced like you said. If you send me a letter through my channel, I will reply with my personal e-mail. I would like to take a look at it anyways.
Mark Hicks
Wells Vehicle Electronics
no, they were not the brightest bulb in the bunch, they couldn’t get the switch out they tried to bend it up and just left it, i bent it back down it will need to be replaced, i can email you a pic of it
I am going to assume you start it with a screw driver now. If this is the case the ignition switch is out and destroyed. Take a look at the ignition switch in the video. Notice the small pin where it fits into the sliding sleeve on the column. When that pin moves it moves that sleeve and unlocks the transmission.
Let me know how you do,
Mark Hicks
Wells Vehicle Electronics
96 jeep Cherokee sport 4.0, some ene tried to steal the jeep but just tore up the ignition switch, i got it to start but when i pressed on the brake to put it in gear nothing happened
What year, make, model and engine size?
Mark Hicks
Wells Vehicle Electronics
my transmission wont move even when i have my foot on the brake
It sounds like you will need an ignition switch and lock cylinder replacement, just like the one in the video. You can get a tamper proof torx bit from most part stores, you will need them.
Mark Hicks
Wells Vehicle Electronics
