How To Repair any No Power On GM Chevy Cluster Yourself Save Money

How To Repair any No Power On GM Chevy Cluster Yourself Save Money

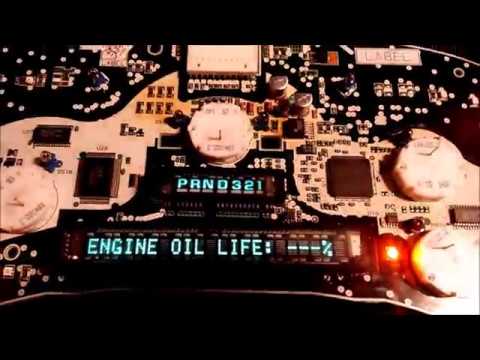

In this video we will show you how to troubleshoot any no power issue on any Fix for GM gauge cluster 03 Silverado PNRD123 light GMC Chevy Pontiac Saturn Oldsmobile Cadillac down to a component level and how to reduce the chances of this problem coming back anytime soon. This is how I fixed my gauge cluster in my 2003 Silverado. It was having intermittent power cut out and the shift indicator light was fading and cutting out.
